| Place of Origin |
Shanghai China (Mainland) |
| Brand Name |
Dan Quan |
| Model Number |
50GDL12-15x9 |
| Structure |
Multistage Pump |
| Usage |
Water |
| Power |
Electric |
| Standard or Nonstandard |
Standard |
| Fuel |
Other |
| Pressure |
Low Pressure |

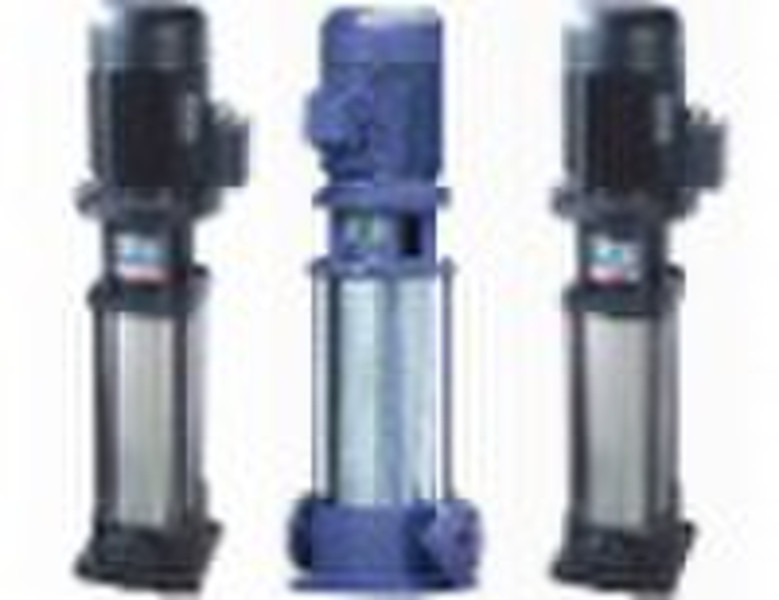

GDL series pump,water pump have been carefully checked by engineers and technicians In good working conditon At most reasonble price be excellent designed and be well popular with the clients both home and abroad Product summary This type is the newest pump and have many good characteristics.the outside is used 1Cr18Ni9Ti superior stainless steel,no leakage and low noisy. 1.Main Features: 1) reasonable design and structure and occupy small area 2) long service life 3) easy and reliable installation and administration 4) wide application 5) convenient maintainance 6) pleasing appearence 7) clean and tidy 8) stable performance 2.Technical parameters and working conditions flow: 12m3/h head:135 efficiency:high efficiency speed:2900r/min power of motor:11kw maximum working pressure:1.6Mpa Operating temperature:<100°c 3.Applications 1) petroleum industry 2) metallurgy industry 3) chemical industry 4) textile industry 5) paper-making indusry 6) wood processing 7) heating supply 8) high temperature pressurized hot water circulation for restaurants,bathrooms,hotels and ect. 4.Model Meaning 50GDL12-15x9 50:diameter of both inlet and outlet(mm) GDL:Vertical Multistage Pipeline Pump 12:design point flow 15:single-stage head 9:pump series Shanghai Danquan Pump Manufacture Co., Ltd. is specialized in manufacturing various series pumps: submersible pumps, centrifugal pumps, sewage pumps, fire-fighting pumps, chemical pumps, oil pumps and so on.which are widely used in the petroleum, chemical industry, metallurgy, mine, generating electricity, heating power, urban construction, sewage treatment, fire control facility, concentrating heat and agriculture irrigation,etc.For more details,you can feel free to contact with me. Contact Person:Ms Lee Telephone:0086-021-57406887 Fax:0086-021-57407605
