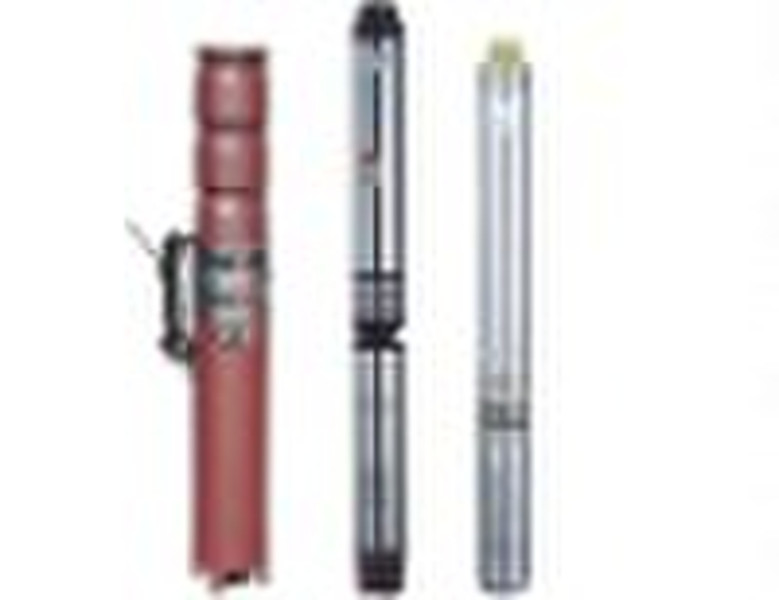

QJ Deep Well Submersible Pump

QJ Deep Well Submersible Pump long service life,low vibration and noise reasonable design compact structure,favorable price Description QJ well submersible pump is a water lifting tool, with the motor and pump integrated into a whole body and submerged into water. It is used to draw ground water from a deep well, or from river, reservoir and aqueduct etc., mainly for agricultural irrigation, water for human being and livestock in plateau areas, water discharge in cities, factories, railways, mines and construction sites. Features 1.Integrated body of motor and pump, submerged operation of great safety. 2.No special requirements on bore pipe and ascending pipe(i.e., it can be used in steel pope well, ash pipe well and shallow well; if pressure permits, steel, rubber and plastic pipes can all be used as ascending pipe). 3.small occupation space, and no need of a pump room. 4.Compact and simple structure and small volume. Model meaning 200 QJ 32 -60/4 200-Base Number(mm) QJ-Well submerged Motor Pump 32-Rated Capacity(m3/h) 60-Rated Head(m) 4-Pump stage Number Workig conditions 1.Three-phase AC power supply of rated frequency at 50Hz and rated voltage at 380±5%. 2.Pump inlet shall be kept below the dynamic level by 1 meter, but the submerged depth shall not exceed 70 meter below the static level. And the lower part of motor shall be kept at least 1 meter to the bottom of the well. 3.Generally, water temperature shall not be higher than 40 degree centigrade. 4.Water quality: (1)Sand content in water not greater than 0.01%(Weight ratio); (2)PH value between 6.5 8.5; (3) Chlorine ion content not greater than 400mg/l. 5.Well shall be straight and slippery with no misalignment of borepipes. Shanghai Danquan Pump Manufacture Co., Ltd. is specialized in manufacturing various series pumps: submersible pumps, centrifugal pumps, sewage pumps, fire-fighting pumps, chemical pumps, oil pumps and so on.which are widely used in the petroleum, chemical industry, metallurgy, mine, generating electricity, heating power, urban construction, sewage treatment, fire control facility, concentrating heat and agriculture irrigation,etc.For more details,you can feel free to contact with me.Contact Person:Ms LeeTelephone:0086-021-57406887Fax:0086-021-57407605
